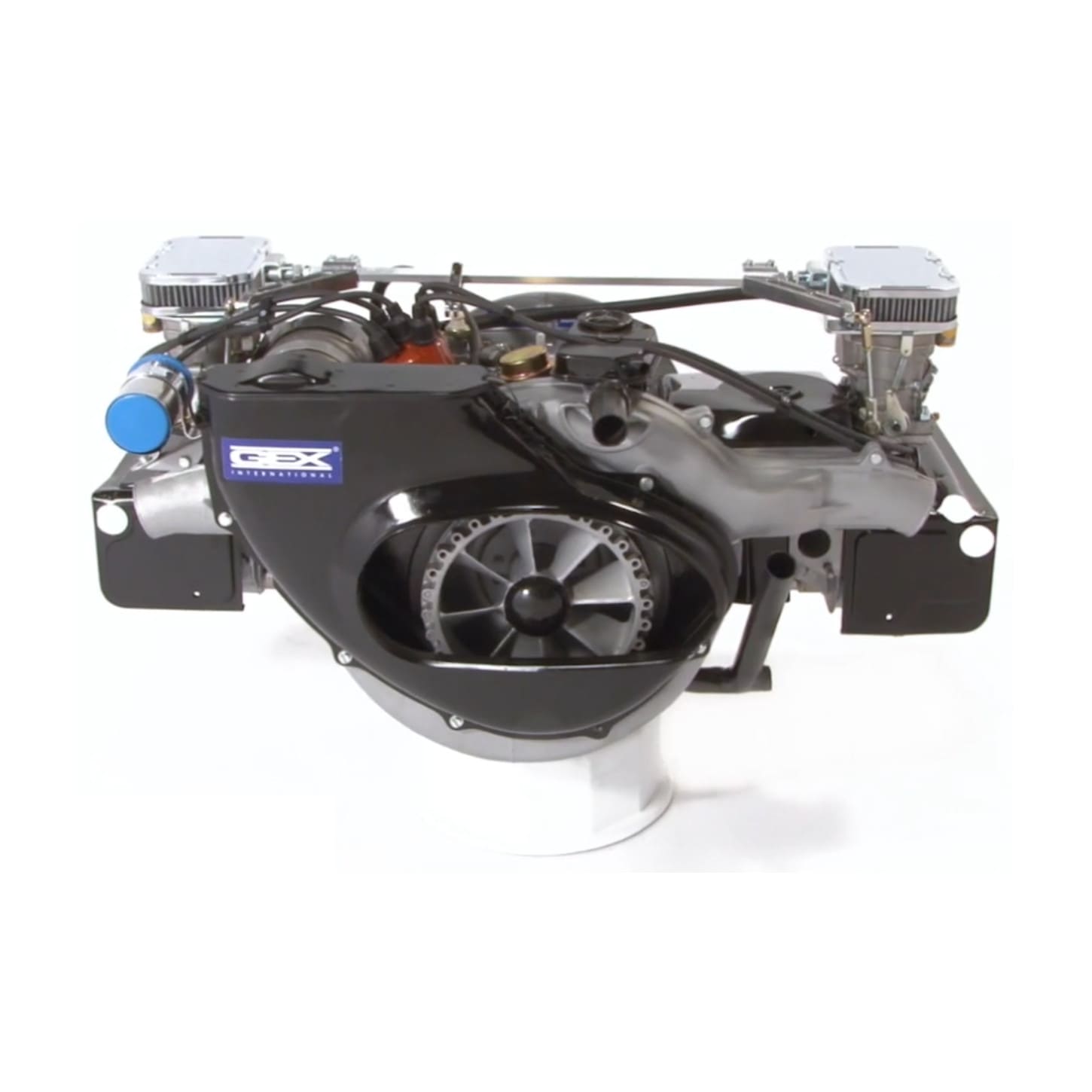

AA-GEX Rebuilt VW Type-3 Air-Cooled Performance Complete Engines, 2110 to 2275 cc

Sale price

Regular price $6,895.00
( / )

SKU: GX 10686XTK3

Description

Rebuilt VW Type III Air-Cooled Performance Complete Engines for 2110, 2180, 2275 cc

All AA-GEX Performance Turnkey engines are Hot Run and Tested under Load Conditions and now include brand NEW dual port heads.

The below engines with crate weigh 320 pounds.

Also see Rebuilt VW Performance Long Block Engines

Starting with a Premium AA-GEX Long Block, the basic 2110 cc, 2180 cc and 2275 cc Turn Key Volkswagen engines include:

  • AA-GEX Standard 12 / 12 warranty
  • NEW Big Valve 042 Dual Port Heads
  • Bosch Ignition Wires
  • Bosch Blue Coil
  • Solid Heavy Duty Rocker Shafts
  • 009 Distributor
  • Reconditioned German Sheet Metal
  • Double Thrust Cam Bearings
  • Heavy Duty Oil Pump
  • AA Piston & Cyl. set
  • Hi Carbon Steel Pushrods
  • Bolt-on Aluminum Valve Covers
  • 8 Dowel Crankshaft & Flywheel
  • Heavy Duty Swivel Adjusters
  • Counterweighted Stroked Chromoly Crankshaft
  • and More

Here is the list of Rebuilt Performance Engines Available:

2110 cc Volkswagen Dual Port Engine
  • 82 mm Stroke x 90.5 mm Bore
  • 40 mm Intake & 35.5 mm Exhaust Valves
  • Dual 44 mm Carbs
  • Engle 110 Cam
The longer 82 mm stroke provides even more torque. Especially good for cars with larger tires or extra weight. This engine is identical to our 2180 with the exception of the slightly smaller bore and thicker cylinders for better heat dissipation.
Part # Description $ Price $ Core
GX10686XTK3 2110 cc VW Dual Port Engine 6,200.00 695.00
2180 cc Volkswagen Dual Port Engine
  • 82 mm Stroke x 92 mm Bore
  • 40 mm Intake & 35.5 mm Exhaust Valves
  • Dual 44 mm Carbs
  • Engle 110 Cam
In an effort to massage every ounce of power from a VW engine, we extensively modify the crankcase, crankshaft, connecting rods and cylinder heads. Special forged aluminum pistons, Engle 110 cam and polished stainless steel racing valves make this engine a tough combination to beat.
Part # Description $ Price $ Core
GX10688XTK3 2180 cc VW Dual Port Engine 6,200.00 695.00
2275 cc Volkswagen Dual Port Engine
  • 82 mm Stroke x 94 mm Bore
  • 40 mm Intake & 35.5 mm Exhaust Valves
  • Dual 44 mm Carbs
  • Engle 110 Cam
The long stroke with the very large bore make this the most powerful engine combination available from GEX. Virtually the same as the 2180 with an even bigger bore for more explosive power. Only for the serious power enthusiast. This engine is not intended for a daily driver.
Part # Description $ Price $ Core
GX10690XTK3 2275 cc VW Dual Port Engine 6,300.00 695.00

Please choose the desired engine you would like to purchase from the drop down menu before adding to cart.

Please call if you have a rebuildable core and wish to inquire about the core charge.
